MSK protocol

Scapula MRI

Scapula MRI for marrow abnormalities, infection, and primary bone tumors including osteochondroma, osteoblastoma, Ewing's sarcoma, Paget disease, and Gorham disease. All sequences are aligned relative to the scapular blade. STIR is used for the sagittal plane; T2 FS is used for axial and coronal planes.

mskscapulashouldertumormarrowwithout contrast

For protocol planning and internal reference only. Follow institutional MRI safety screening, contrast, dosage, and GFR policies.

Decision supportContrast GuidanceDefault contrast approach and conditional indications.
No routine contrast guidance listed for this noncontrast protocol.
Acquisition listSequencesRequired and conditional series for the exam.
SequencePlanePhaseRequiredNotes
LocalizerAnynoncontrastYes-
Localizer 3 PlaneAnynoncontrastYes-
Axial T2 FSaxialnoncontrastYes-
Axial T1axialnoncontrastYes-
Coronal T2 FScoronalnoncontrastYes-
Coronal T1coronalnoncontrastYes-
Sagittal STIRsagittalnoncontrastYes-
Sagittal T1sagittalnoncontrastYes-
Axial T1 FS PreaxialprecontrastConditional-
InjectAnyconditionalConditional-
Axial T1 FS +CaxialpostcontrastConditional-
Coronal T1 FS +CcoronalpostcontrastConditional-
Sagittal T1 FS +CsagittalpostcontrastConditional-
PositioningSlice PlanningPlane-specific planning instructions and guide images for technologists.

sagittal

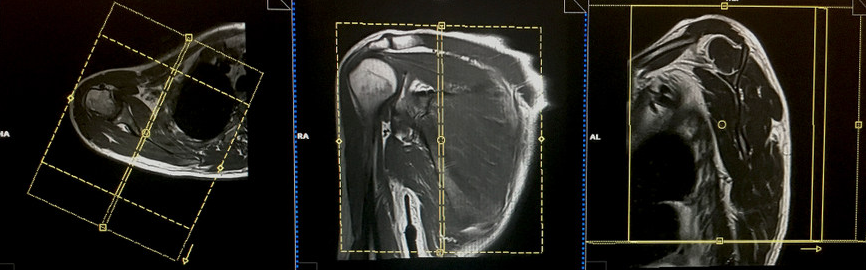

Sagittal planning

  • Angle perpendicular to the scapular blade.
  • FOV covers the whole scapula from the deltoid muscle laterally past the medial border of the scapula.

Scapula sagittal planning

sagittal

Source DOCX: ../protocols-final-cleaned/msk/scapula-mri.docx. Embedded image order: 1. Nearby source label: Sagittal.

axial

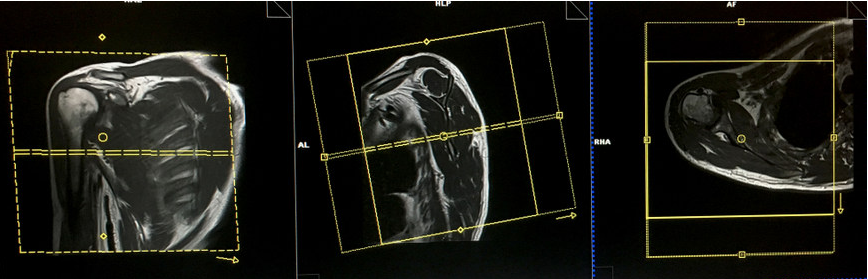

Axial planning

  • Angle perpendicular to the scapular blade.
  • FOV covers the whole scapula from the top of the acromioclavicular joint to below the inferior angle of the scapula.

Scapula axial planning

axial

Source DOCX: ../protocols-final-cleaned/msk/scapula-mri.docx. Embedded image order: 2. Nearby source label: Axial.

coronal

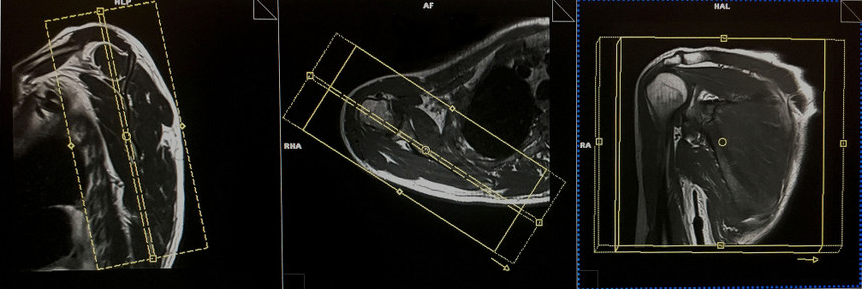

Coronal planning

  • Angle parallel to the scapular blade.
  • FOV covers the whole scapula from the anterior portion of the coracoid process to the posterior margin.

Scapula coronal planning

coronal

Source DOCX: ../protocols-final-cleaned/msk/scapula-mri.docx. Embedded image order: 3. Nearby source label: Coronal.

Anatomic extentCoverage RulesMinimum coverage expectations and alignment rules.

sagittal

Sagittal field of view

Whole scapula from the deltoid muscle laterally past the medial border, angled perpendicular to the scapular blade.

axial

Axial field of view

Whole scapula from the top of the acromioclavicular joint to below the inferior angle of the scapula, angled perpendicular to the scapular blade.

coronal

Coronal field of view

Whole scapula from the anterior coracoid process to the posterior margin, angled parallel to the scapular blade.

TechniqueSuggested Technique SpecificationsPlane-level vendor-neutral guidance from the source protocol.

sagittal

slice thickness
<= 3.0 mm
gap
<= 1.0 mm

axial

slice thickness
<= 3.0 mm
gap
<= 1.0 mm

coronal

slice thickness
<= 3.0 mm
gap
<= 1.0 mm
Conditional workflowSpecial SituationsAdjustments for contrast, hardware, and protocol-specific conditions.
