Sternum MRI

Sternum MRI for degenerative and inflammatory conditions, trauma, neoplasms, and metastases. Sagittal plane aligned parallel to the body of the sternum with coverage from the sternoclavicular joints to the xiphoid process. T2 FS or STIR may be used for the fluid-sensitive sequences in the coronal and axial planes. Routinely performed without contrast.

msksternumchest wallwithout contrast

For protocol planning and internal reference only. Follow institutional MRI safety screening, contrast, dosage, and GFR policies.

Decision supportContrast GuidanceDefault contrast approach and conditional indications.
No routine contrast guidance listed for this noncontrast protocol.
Acquisition listSequencesRequired and conditional series for the exam.
SequencePlanePhaseRequiredNotes
LocalizerAnynoncontrastYes-
Sagittal T2sagittalnoncontrastYes-
Coronal T1coronalnoncontrastYes-
Coronal T2 FS or STIRcoronalnoncontrastYesUse T2 FS or STIR based on scanner performance and fat suppression homogeneity.
Axial T1axialnoncontrastYes-
Axial T2 FS or STIRaxialnoncontrastYesUse T2 FS or STIR based on scanner performance and fat suppression homogeneity.
Axial T1 FS PreaxialprecontrastConditional-
InjectAnyconditionalConditional-
Axial T1 FS +CaxialpostcontrastConditional-
Coronal T1 FS +CcoronalpostcontrastConditional-
PositioningSlice PlanningPlane-specific planning instructions and guide images for technologists.

sagittal

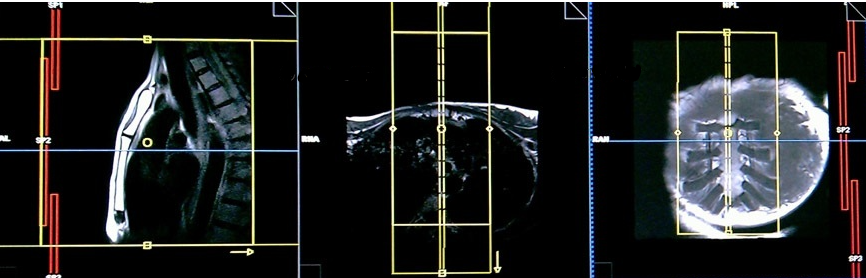

Sagittal planning

  • Angle parallel to the body of the sternum.
  • FOV covers the whole sternum and both sternoclavicular joints.

Sternum sagittal planning

sagittal

Source DOCX: ../protocols-final-cleaned/msk/sternum-mri.docx. Embedded image order: 1. Nearby source label: Sagittal.

axial

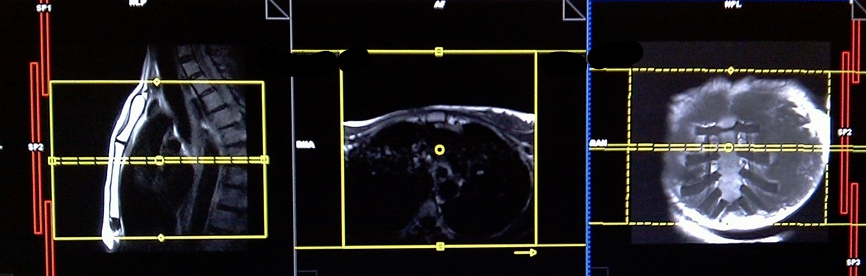

Axial planning

  • Angle perpendicular to the sternum.
  • FOV covers the sternum from above the suprasternal notch down to the lower border of the xiphoid process.

Sternum axial planning

axial

Source DOCX: ../protocols-final-cleaned/msk/sternum-mri.docx. Embedded image order: 2. Nearby source label: Axial.

coronal

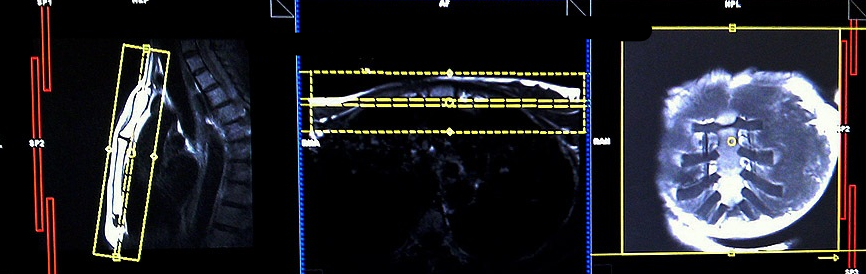

Coronal planning

  • Angle parallel to the sternum.
  • FOV covers the whole sternum from anterior to posterior.

Sternum coronal planning

coronal

Source DOCX: ../protocols-final-cleaned/msk/sternum-mri.docx. Embedded image order: 3. Nearby source label: Coronal.

Anatomic extentCoverage RulesMinimum coverage expectations and alignment rules.

sagittal

Sagittal field of view

Whole sternum and both sternoclavicular joints, aligned parallel to the body of the sternum.

axial

Axial field of view

Suprasternal notch to the lower border of the xiphoid process, aligned perpendicular to the sternum.

coronal

Coronal field of view

Whole sternum from anterior to posterior, aligned parallel to the sternum.

TechniqueSuggested Technique SpecificationsPlane-level vendor-neutral guidance from the source protocol.

sagittal

slice thickness
<= 3.0 mm
gap
<= 2.0 mm

axial

slice thickness
<= 3.0 mm
gap
<= 2.0 mm

coronal

slice thickness
<= 3.0 mm
gap
<= 2.0 mm
Conditional workflowSpecial SituationsAdjustments for contrast, hardware, and protocol-specific conditions.

Surgical hardware present

  • Consult radiologist for sequence modifications. Source document lists no specific hardware substitutions.
Future detailAdvancedSource-backed scanner, vendor, and site-specific notes when available.

Advanced technical details, scanner variants, and planning guide assets can appear here as protocol data expands.
