Temporomandibular Joint (TMJ) MRI

Bilateral TMJ MRI for jaw movement disorder and TMJ pain evaluation. Acquires both closed-mouth and open-mouth bilateral sequences in the sagittal and coronal planes. Very thin slices (2.0 mm) with minimal gap. A bite block or syringe is used to maintain mouth opening during open-mouth sequences.

neuroTMJtemporomandibular jointjawbilateralclosed mouthopen mouthwithout contrast

For protocol planning and internal reference only. Follow institutional MRI safety screening, contrast, dosage, and GFR policies.

Decision supportContrast GuidanceDefault contrast approach and conditional indications.
No routine contrast guidance listed for this noncontrast protocol.
Acquisition listSequencesRequired and conditional series for the exam.
SequencePlanePhaseRequiredNotes
LocalizerAnynoncontrastYes-
Coronal T1 Bilateral Closed MouthcoronalnoncontrastYesBilateral acquisition with mouth closed.
Sagittal T1 Bilateral Closed MouthsagittalnoncontrastYesBilateral acquisition with mouth closed.
Sagittal T2 GRE Bilateral Closed MouthsagittalnoncontrastYesBilateral acquisition with mouth closed.
Sagittal T2 FS Bilateral Closed MouthsagittalnoncontrastYesBilateral acquisition with mouth closed.
Sagittal T1 Bilateral Open MouthsagittalnoncontrastYesBilateral acquisition. Give patient bite block or syringe to maintain wide mouth opening.
Sagittal T2 GRE Bilateral Open MouthsagittalnoncontrastYesBilateral acquisition. Give patient bite block or syringe to maintain wide mouth opening.
Sagittal T2 FS Bilateral Open MouthsagittalnoncontrastYesBilateral acquisition. Give patient bite block or syringe to maintain wide mouth opening.
PositioningSlice PlanningPlane-specific planning instructions and guide images for technologists.

sagittal

Sagittal planning

  • Align parallel to the ramus of the mandible.
  • Cover the mandibular fossa from left to right to include the ramus.
  • For open-mouth sequences: provide the patient with a bite block or syringe large enough to keep the mouth wide open before acquiring.

TMJ sagittal planning - sagittal view

sagittal

Source slide 102 (TMJ). Sagittal reference image used to plan the sagittal acquisition.

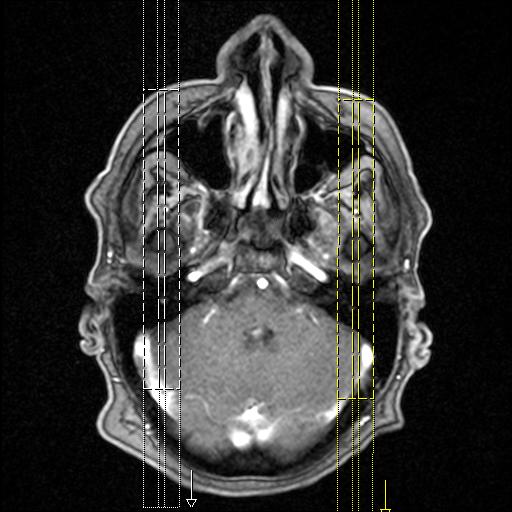

TMJ sagittal planning - axial view

sagittal

Source slide 102 (TMJ). Axial reference image used to plan the sagittal acquisition.

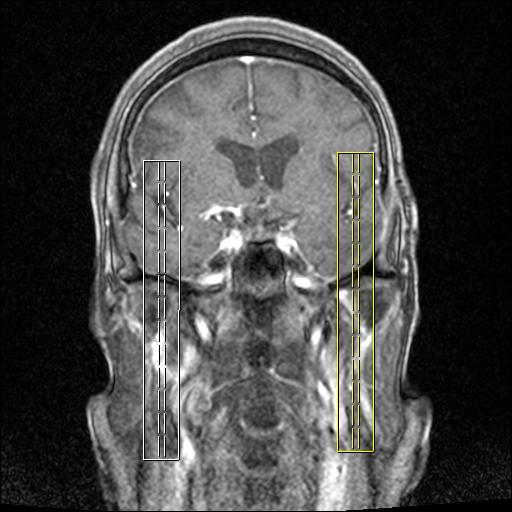

TMJ sagittal planning - coronal view

sagittal

Source slide 102 (TMJ). Coronal reference image used to plan the sagittal acquisition.

coronal

Coronal planning

  • Align orthogonally.
  • Align parallel bisecting the mandibular fossa bilaterally.
  • Cover from posterior to the mandibular fossa through the coronoid process.

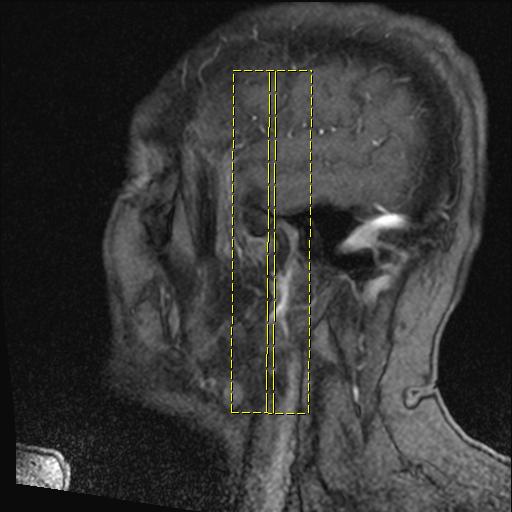

TMJ coronal planning - sagittal view

coronal

Source slide 103 (TMJ). Sagittal reference image used to plan the coronal acquisition.

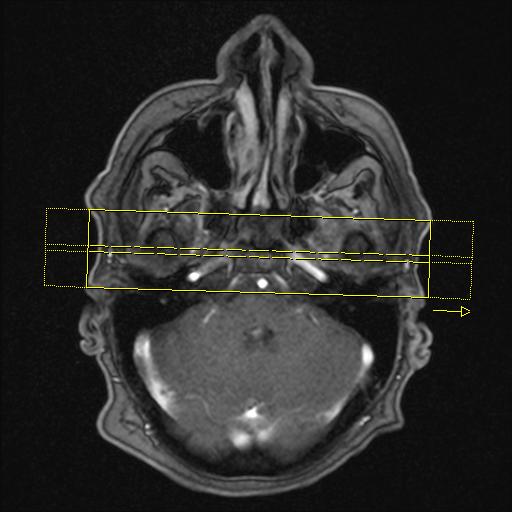

TMJ coronal planning - axial view

coronal

Source slide 103 (TMJ). Axial reference image used to plan the coronal acquisition.

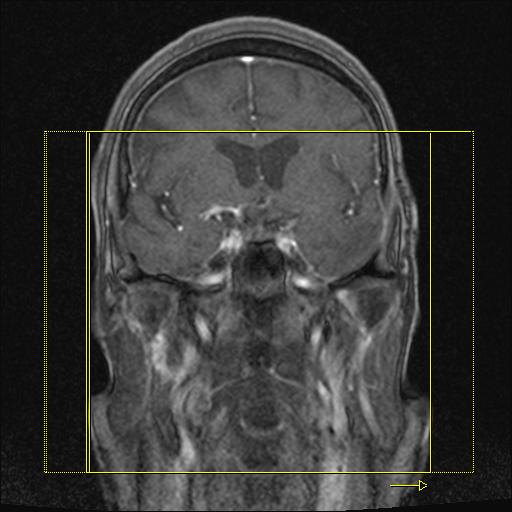

TMJ coronal planning - coronal view

coronal

Source slide 103 (TMJ). Coronal reference image used to plan the coronal acquisition.

Anatomic extentCoverage RulesMinimum coverage expectations and alignment rules.

sagittal

Sagittal field of view

Cover the mandibular fossa from left to right to include the ramus of the mandible.

coronal

Coronal field of view

Cover from posterior to the mandibular fossa through the coronoid process, aligned parallel bisecting the mandibular fossa bilaterally.

TechniqueSuggested Technique SpecificationsPlane-level vendor-neutral guidance from the source protocol.

sagittal

slice thickness
<= 2.0 mm
gap
<= 0.2 mm

coronal

slice thickness
<= 2.0 mm
gap
<= 0.2 mm
Conditional workflowSpecial SituationsAdjustments for contrast, hardware, and protocol-specific conditions.

Surgical hardware present

  • Add Sagittal STIR Bilateral Closed Mouth sequence.
  • Add Sagittal STIR Bilateral Open Mouth sequence.
Future detailAdvancedSource-backed scanner, vendor, and site-specific notes when available.

Advanced technical details, scanner variants, and planning guide assets can appear here as protocol data expands.
